Calibrating a complex crop model using the AgMIP protocol

Introduction

This vignette illustrates the use of the run_protocol_agmip function on a realistic and complex crop model (STICS) and a multi-environment dataset. Its goal is to demonstrate the complete workflow, from protocol specification to the analysis of results.

This document intentionally focuses on a representative use case and does not aim at exhaustively documenting all features of the function. Advanced options (e.g. parameter constraints, variable transformations, custom optimization settings, alternative information criteria) are therefore not covered here and are documented in the function reference manual (?CroptimizR::run_protocol_agmip).

The AgMIP calibration protocol is described in detail in Wallach et al (2024) and Wallach et al (2025). Only a brief contextual description is given here.

Scientific and technical context

The AgMIP calibration protocol

The AgMIP calibration protocol is a two-step procedure:

Step 6: sequential parameter estimation by groups of variables, with automatic selection of candidate parameters based on an information criterion.
Step 7: joint re-estimation of all selected parameters using all available observations, by weighted least squares.

In this vignette, we focus on how to describe and run this protocol using CroptimizR, not on re-describing the protocol itself. The reader is referred to Wallach et al. (2024, 2025) for the scientific rationale. A more detailed, implementation-oriented description of the protocol, including the precise sequence of operations, default settings, optimization strategy, and selection rules, as implemented in CroptimizR is provided in the documentation of run_protocol_agmip.

The STICS model and CroptimizR wrappers

This example uses the STICS crop model, but CroptimizR can in fact be applied to any crop model, provided that a suitable wrapper is available. Guidelines and examples for implementing wrappers are provided in the vignette: https://sticsrpacks.github.io/CroptimizR/articles/Designing_a_model_wrapper.html

Note that wrappers already exist for several models. For more details, see the Get started page or contact the authors.

The dataset

The dataset used in this example comes from the synthetic experiment defined in Wallach et al. (2024).

It includes 22 environments (called situations in CroptimizR terminology). Fourteen situations are used for calibration (six different sites, five different years) and eight for evaluation. Each situation includes all the necessary information to run the crop model (soil, management, weather). Corresponding STICS input files were prepared beforehand.

Observations and data formatting

Observed variables

The observed variables used for model calibration in this example include:

days from 1st January of the sowing year to BBCH30, BBCH55, and BBCH90 (STICS variables iamfs, ilaxs, and imats),
biomass at various dates (STICS variable masec_n), in t.ha-1,
grain number (STICS variable chargefruit), in grains.m-2,
grain yield (STICS variable mafruit), in t.ha-1.

Observations of plant nitrogen content and seed protein, which were part of the original dataset, are not included here because they are not directly simulated by the STICS model. They could be derived from variables simulated by STICS using the transform_sim argument (as done in Wallach et al., 2024), but this is not illustrated here for the sake of simplicity.

The cropr format

All observations must be formatted in the cropr format, i.e. as a named list of data frames (or tibble), each element being named after the corresponding situation (see the Get started vignette of CroptimizR for details).

obs_list <- readRDS(
  system.file("extdata", "AgMIP_protocol", "vignette_data", "obs_list.Rds", package = "CroptimizR")
)

# Show the first two situations
obs_list[1:2]
#> $`Site2-culA-10-tec2`
#>         Date iamfs ilaxs imats masec_n chargefruit  mafruit
#> 1 2010-12-31   455   509   556      NA    13539.42 3.808691
#>
#> $`Site2-culA-11-tec7`
#>         Date iamfs ilaxs imats   masec_n chargefruit mafruit
#> 1 2011-04-01    NA    NA    NA 0.8574894          NA      NA
#> 2 2011-04-20    NA    NA    NA 3.3697419          NA      NA
#> 3 2011-04-29    NA    NA    NA 4.7809235          NA      NA
#> 4 2011-05-19    NA    NA    NA 6.7784120          NA      NA
#> 5 2011-12-31   450   492   544        NA          NA      NA

Here, we displayed the available observations for the first two situations, Site2-culA-10-tec2 and Site2-culA-11-tec7. In this example, end-of-season observations are assigned to the last day of the year to ensure that these observed values are compared with the final simulated values.

Describing the calibration protocol

Principle

Describing the AgMIP protocol for CroptimizR essentially requires specifying:

the groups of observed variables and their order of use in Step 6,
the list of major and candidate parameters associated with each group,
the default values and bounds of all parameters.

Excel-based specification

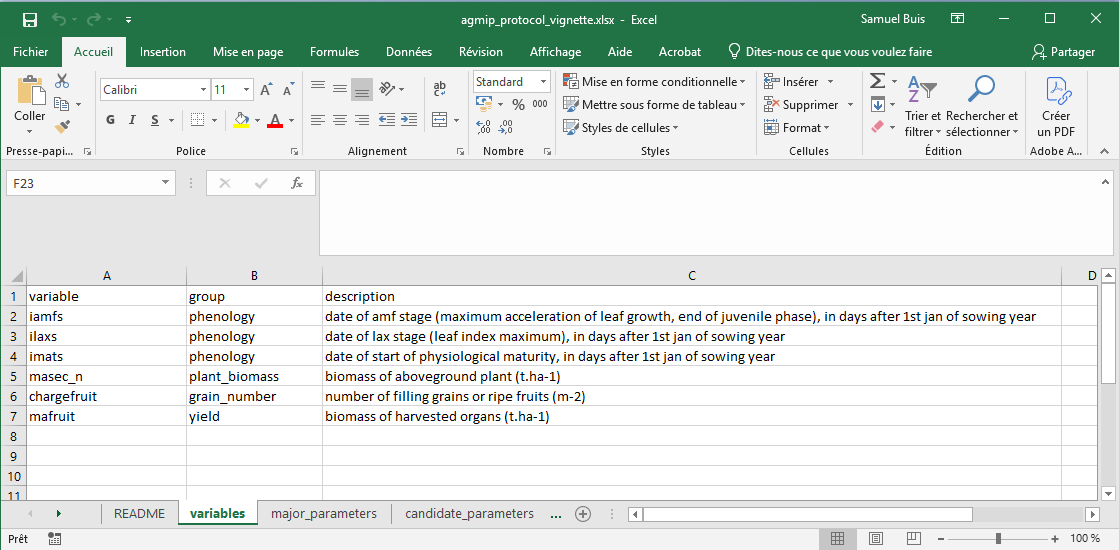

This information can be provided using a single Excel file containing at least three sheets named:

variables,
major_parameters,
candidate_parameters.

In this example, this file is named agmip_protocol_vignette.xlsx and is located in the extdata/AgMIP_protocol folder. Here is a preview of this file:

The order of the variable groups in the variables sheet is particularly important, as it determines their sequence in Step 6 of the protocol.

The descriptions columns are not used by CroptimizR and are optional. They are only useful for documentation purposes.

Note that CroptimizR provides helper functions to make it easy to get started with the Excel-based protocol specification:

get_agmip_protocol_template() returns the official Excel template that must be filled by the user to define a new protocol.
get_agmip_protocol_example() provides a fully worked example.

Although the protocol is provided here as an Excel file for convenience and readability, the calibration procedure actually relies on two R objects, step and param_info, which fully describe the protocol. In the following section, we examine their structure to understand how the protocol is defined for this specific example.

Converting the Excel file to R objects

The Excel file is converted into R data structures using the load_protocol_agmip function.

Here, we load the protocol description file associated with this vignette:

protocol_descr <- CroptimizR::load_protocol_agmip(
  protocol_file_path =
    system.file("extdata", "AgMIP_protocol", "agmip_protocol_vignette.xlsx", package = "CroptimizR")
)

names(protocol_descr)
#> [1] "step"       "param_info"
step <- protocol_descr$step
param_info <- protocol_descr$param_info

In this case, the function returns a list with two elements: step and param_info. We assigned them to two separate objects to improve readability in the rest of the report and code. These two objects are the core inputs needed to describe Step 6 of the protocol.

Note that creating this Excel file is not mandatory. Users may directly build these R objects by hand, but the Excel-based workflow is recommended for clarity, reproducibility, and ease of editing.

Structure of the protocol for this example

names(step)
#> [1] "phenology"     "plant_biomass" "grain_number"  "yield"

Given the available observed variables and the structure of the STICS model, the order defined for the successive groups in Step 6 is:

phenology → plant_biomass → grain_number → yield

Parameters associated with the phenology group are therefore estimated first and then fixed to their estimated values in the subsequent groups. Then parameters of the plant_biomass group are estimated, and so on.

The order of the groups is chosen to minimize feedback, i.e. the influence of a simulated variable on variables that appear earlier in the sequence.

Phenology defines the timing of the main developmental stages of the crop cycle. Plant biomass accumulation depends on these stages and on their synchronisation with environmental conditions. Finally, yield components (first grain number, then grain weight, during two successive phenological phases) depend on biomass growth rate and on the amount of accumulated vegetative biomass. All these processes are therefore interdependent and occur in a well-defined causal order in the STICS model, which is reflected in the calibration strategy.

Example: the phenology group

step[["phenology"]]
#> $major_param
#> [1] "stlevamf" "stamflax" "stdrpmat"
#>
#> $candidate_param
#> [1] "jvc"       "sensrsec"  "belong"    "jvcmini"   "stressdev"
#>
#> $obs_var
#> [1] "iamfs" "ilaxs" "imats"

The major parameters should be chosen with the main goal of reducing bias. A good choice is typically a parameter that affects the simulated values in all environments and behaves approximately like an additive constant.

For phenology, the major parameters chosen here are the thermal time requirements to reach the different observed stages: stlevamf, stamflax, stdrpmat.

For this group, there are three major parameters because there are three observed variables (BBCH30, BBCH55, BBCH90). The protocol recommends selecting one major parameter per observed variable. For groups with multiple measurements over time, it is common to select two or three major parameters (but rarely more), typically either parameters that affect the variable at different periods of the crop cycle, or parameters that separately control the average level and the rate of change over time.

The candidate parameters are those expected to explain part of the variability between environments. They should be ordered, as far as possible, by decreasing expected importance. There is no strict limit on their number, but increasing it increases computation time.

In this example, five candidate parameters are used for the phenology group: jvc, sensrsec, belong, jvcmini, stressdev. They were ordered based on expert knowledge of the STICS model.

During calibration of the different groups, the major parameters are first estimated. Then candidate parameters are added one by one to the list of estimated parameters and kept only if the resulting information criterion value (AICc by default) improves. Non-selected candidates are fixed to their default values, as are all parameters belonging to groups that have not yet been processed.

Parameter information

# Display only the first lines of each component for readability
lapply(param_info, head)
#> $lb
#>    stlevamf    stamflax    stdrpmat   efcroiveg efcroirepro      cgrain
#>      150.00      150.00      500.00        3.00        3.00        0.03
#>
#> $ub
#>    stlevamf    stamflax    stdrpmat   efcroiveg efcroirepro      cgrain
#>       4e+02       5e+02       9e+02       6e+00       6e+00       4e-02
#>
#> $default
#>    stlevamf    stamflax    stdrpmat   efcroiveg efcroirepro      cgrain
#>    324.8000    446.8000    820.0000      5.3000      3.5000      0.0324

All information required to automate the protocol (parameter bounds and default values) is stored in the param_info object.

Running the protocol

Running the whole calibration protocol is done with a single call to run_protocol_agmip.

res <- CroptimizR::run_protocol_agmip(
  obs_list = obs_list,
  model_function = SticsOnR::stics_wrapper,
  model_options = model_options,
  param_info = param_info,
  transform_var = c(masec_n = function(x) log(pmax(x, 1e-6))),
  step = step
)

Note that run_protocol_agmip includes many optional arguments not illustrated here (constraints, transformations, optimization settings, etc.). See ?CroptimizR::run_protocol_agmip for details.

Some model-specific initialization steps (construction of model_options for the stics_wrapper) are not shown here for the sake of brevity and because they are model-dependent.

In this example, we illustrate the use of the optional transform_var argument to apply a logarithmic transformation to biomass observations (masec_n). Such transformations are recommended when the variance of the errors is assumed to be proportional to the magnitude of the variable. The pmax(x, 1e-6) construction ensures that zero values are replaced by a small positive number before applying the log, preventing numerical errors.

During execution, the main steps of the protocol and associated results are displayed in the console:

 AgMIP Calibration Phase IV protocol: automatic calculation steps 6 and 7
(see doi.org/10.1016/j.envsoft.2024.106147 for a detailed description of the full protocol)

-- Step6

---- Step6.phenology


------ Parameter automatic selection procedure: Step6.phenology.Major(s)

       Major parameter(s): stlevamf stamflax stdrpmat
       Estimated parameter(s): stlevamf stamflax stdrpmat
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, jvc= 58.36400, sensrsec=  0.80000, belong=  0.02280, jvcmini= 11.80000, stressdev=  0.60000, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 10.00%. Estimated remaining time: 60.10 mins
Working: 20.00%. Estimated remaining time: 44.22 mins
Working: 30.00%. Estimated remaining time: 35.92 mins
Working: 40.00%. Estimated remaining time: 33.53 mins
Working: 50.00%. Estimated remaining time: 27.02 mins
Working: 60.00%. Estimated remaining time: 22.63 mins
Working: 70.00%. Estimated remaining time: 16.87 mins
Working: 80.00%. Estimated remaining time: 11.20 mins
Working: 90.00%. Estimated remaining time: 5.35 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 192
       Estimated value for stamflax: 256
       Estimated value for stdrpmat: 500
       Minimum value of the criterion: 785
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step1

       Current value of the information criterion: 130

------ Parameter automatic selection procedure: Step6.phenology.Candidate1

       Major parameter(s): stlevamf stamflax stdrpmat
       Current candidate parameter evaluated: jvc
       Estimated parameter(s): stlevamf stamflax stdrpmat jvc
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, sensrsec=  0.80000, belong=  0.02280, jvcmini= 11.80000, stressdev=  0.60000, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 20.00%. Estimated remaining time: 17.98 mins
Working: 40.00%. Estimated remaining time: 13.30 mins
Working: 60.00%. Estimated remaining time: 9.31 mins
Working: 80.00%. Estimated remaining time: 4.79 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 210
       Estimated value for stamflax: 254
       Estimated value for stdrpmat: 500
       Estimated value for jvc: 36
       Minimum value of the criterion: 683
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step2

       Current value of the information criterion: 126
       Candidate parameter jvc is selected

------ Parameter automatic selection procedure: Step6.phenology.Candidate2

       Major parameter(s): stlevamf stamflax stdrpmat
       Current candidate parameter evaluated: sensrsec
       Estimated parameter(s): stlevamf stamflax stdrpmat jvc sensrsec
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, jvcmini= 11.80000, stressdev=  0.60000, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 20.00%. Estimated remaining time: 25.94 mins
Working: 40.00%. Estimated remaining time: 17.26 mins
Working: 60.00%. Estimated remaining time: 10.64 mins
Working: 80.00%. Estimated remaining time: 5.42 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 216
       Estimated value for stamflax: 253
       Estimated value for stdrpmat: 500
       Estimated value for jvc: 28
       Estimated value for sensrsec: 0.91
       Minimum value of the criterion: 626
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step3

       Current value of the information criterion: 125
       Candidate parameter sensrsec is selected

------ Parameter automatic selection procedure: Step6.phenology.Candidate3

       Major parameter(s): stlevamf stamflax stdrpmat
       Current candidate parameter evaluated: belong
       Estimated parameter(s): stlevamf stamflax stdrpmat jvc sensrsec belong
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, jvcmini= 11.80000, stressdev=  0.60000, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 20.00%. Estimated remaining time: 23.38 mins
Working: 40.00%. Estimated remaining time: 19.12 mins
Working: 60.00%. Estimated remaining time: 12.34 mins
Working: 80.00%. Estimated remaining time: 5.93 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 216
       Estimated value for stamflax: 256
       Estimated value for stdrpmat: 500
       Estimated value for jvc: 29
       Estimated value for sensrsec: 0.98
       Estimated value for belong: 0.011
       Minimum value of the criterion: 616
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step4

       Current value of the information criterion: 127
       Candidate parameter belong is rejected

------ Parameter automatic selection procedure: Step6.phenology.Candidate4

       Major parameter(s): stlevamf stamflax stdrpmat
       Current candidate parameter evaluated: jvcmini
       Estimated parameter(s): stlevamf stamflax stdrpmat jvc sensrsec jvcmini
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, stressdev=  0.60000, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 20.00%. Estimated remaining time: 19.37 mins
Working: 40.00%. Estimated remaining time: 18.16 mins
Working: 60.00%. Estimated remaining time: 12.11 mins
Working: 80.00%. Estimated remaining time: 5.82 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 230
       Estimated value for stamflax: 257
       Estimated value for stdrpmat: 503
       Estimated value for jvc: 29
       Estimated value for sensrsec: 0.94
       Estimated value for jvcmini: 3.4
       Minimum value of the criterion: 579
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step5

       Current value of the information criterion: 125
       Candidate parameter jvcmini is selected

------ Parameter automatic selection procedure: Step6.phenology.Candidate5

       Major parameter(s): stlevamf stamflax stdrpmat
       Current candidate parameter evaluated: stressdev
       Estimated parameter(s): stlevamf stamflax stdrpmat jvc sensrsec jvcmini stressdev
       Forced parameter(s): efcroiveg=  5.30000, efcroirepro=  3.50000, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: iamfs, ilaxs, imats

Working: 20.00%. Estimated remaining time: 34.43 mins
Working: 40.00%. Estimated remaining time: 24.73 mins
Working: 60.00%. Estimated remaining time: 18.72 mins
Working: 80.00%. Estimated remaining time: 9.16 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for stlevamf: 225
       Estimated value for stamflax: 277
       Estimated value for stdrpmat: 518
       Estimated value for jvc: 34
       Estimated value for sensrsec: 0.99
       Estimated value for jvcmini: 3.3
       Estimated value for stressdev: 0.51
       Minimum value of the criterion: 448
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step6

       Current value of the information criterion: 117
       Candidate parameter stressdev is selected

------ End of parameter selection procedure

---- Summary of the Parameter Selection procedure results

     Selected step:6
     Selected parameters: stlevamf,stamflax,stdrpmat,jvc,sensrsec,jvcmini,stressdev
     Estimated value for stlevamf: 224.72
     Estimated value for stamflax: 277.26
     Estimated value for stdrpmat: 517.96
     Estimated value for jvc: 34.37
     Estimated value for sensrsec: 0.99
     Estimated value for jvcmini: 3.35
     Estimated value for stressdev: 0.51
     Results of the parameter selection procedure are stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/optim_results.Rdata
     A table summarizing the results obtained at the different steps is stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_selection_steps.csv
     Graphs and detailed results obtained for the different parameter selection steps can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.phenology/param_select_step# folders.

---- End of Step Step6.phenology

---- Step6.plant_biomass


------ Parameter automatic selection procedure: Step6.plant_biomass.Major(s)

       Major parameter(s): efcroiveg efcroirepro
       Estimated parameter(s): efcroiveg efcroirepro
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, dlaimaxbrut=  0.00319, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 10.00%. Estimated remaining time: 21.64 mins
Working: 20.00%. Estimated remaining time: 17.33 mins
Working: 30.00%. Estimated remaining time: 17.18 mins
Working: 40.00%. Estimated remaining time: 14.79 mins
Working: 50.00%. Estimated remaining time: 11.67 mins
Working: 60.00%. Estimated remaining time: 9.87 mins
Working: 70.00%. Estimated remaining time: 7.56 mins
Working: 80.00%. Estimated remaining time: 4.93 mins
Working: 90.00%. Estimated remaining time: 2.46 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 3
       Estimated value for efcroirepro: 4.3
       Minimum value of the criterion: 7.1
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step1

       Current value of the information criterion: -76

------ Parameter automatic selection procedure: Step6.plant_biomass.Candidate1

       Major parameter(s): efcroiveg efcroirepro
       Current candidate parameter evaluated: dlaimaxbrut
       Estimated parameter(s): efcroiveg efcroirepro dlaimaxbrut
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 20.00%. Estimated remaining time: 24.35 mins
Working: 40.00%. Estimated remaining time: 16.90 mins
Working: 60.00%. Estimated remaining time: 10.37 mins
Working: 80.00%. Estimated remaining time: 5.19 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 4.6
       Estimated value for efcroirepro: 4.2
       Estimated value for dlaimaxbrut: 0.00029
       Minimum value of the criterion: 0.82
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step2

       Current value of the information criterion: -169
       Candidate parameter dlaimaxbrut is selected

------ Parameter automatic selection procedure: Step6.plant_biomass.Candidate2

       Major parameter(s): efcroiveg efcroirepro
       Current candidate parameter evaluated: durvieF
       Estimated parameter(s): efcroiveg efcroirepro dlaimaxbrut durvieF
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 20.00%. Estimated remaining time: 20.23 mins
Working: 40.00%. Estimated remaining time: 18.50 mins
Working: 60.00%. Estimated remaining time: 12.44 mins
Working: 80.00%. Estimated remaining time: 6.10 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 4.6
       Estimated value for efcroirepro: 4.6
       Estimated value for dlaimaxbrut: 0.00029
       Estimated value for durvieF: 265
       Minimum value of the criterion: 0.82
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step3

       Current value of the information criterion: -166
       Candidate parameter durvieF is rejected

------ Parameter automatic selection procedure: Step6.plant_biomass.Candidate3

       Major parameter(s): efcroiveg efcroirepro
       Current candidate parameter evaluated: vlaimax
       Estimated parameter(s): efcroiveg efcroirepro dlaimaxbrut vlaimax
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 20.00%. Estimated remaining time: 28.14 mins
Working: 40.00%. Estimated remaining time: 19.31 mins
Working: 60.00%. Estimated remaining time: 15.82 mins
Working: 80.00%. Estimated remaining time: 7.44 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 4.5
       Estimated value for efcroirepro: 4.3
       Estimated value for dlaimaxbrut: 0.00031
       Estimated value for vlaimax: 2.5
       Minimum value of the criterion: 0.81
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step4

       Current value of the information criterion: -167
       Candidate parameter vlaimax is rejected

------ Parameter automatic selection procedure: Step6.plant_biomass.Candidate4

       Major parameter(s): efcroiveg efcroirepro
       Current candidate parameter evaluated: psisto
       Estimated parameter(s): efcroiveg efcroirepro dlaimaxbrut psisto
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 20.00%. Estimated remaining time: 34.45 mins
Working: 40.00%. Estimated remaining time: 23.67 mins
Working: 60.00%. Estimated remaining time: 15.43 mins
Working: 80.00%. Estimated remaining time: 7.46 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 4.6
       Estimated value for efcroirepro: 4.7
       Estimated value for dlaimaxbrut: 0.00029
       Estimated value for psisto: 11
       Minimum value of the criterion: 0.82
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step5

       Current value of the information criterion: -166
       Candidate parameter psisto is rejected

------ Parameter automatic selection procedure: Step6.plant_biomass.Candidate5

       Major parameter(s): efcroiveg efcroirepro
       Current candidate parameter evaluated: psiturg
       Estimated parameter(s): efcroiveg efcroirepro dlaimaxbrut psiturg
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, cgrain=  0.03240, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: masec_n

Working: 20.00%. Estimated remaining time: 31.24 mins
Working: 40.00%. Estimated remaining time: 21.11 mins
Working: 60.00%. Estimated remaining time: 14.82 mins
Working: 80.00%. Estimated remaining time: 7.40 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for efcroiveg: 4.6
       Estimated value for efcroirepro: 4.5
       Estimated value for dlaimaxbrut: 0.00029
       Estimated value for psiturg: 2.1
       Minimum value of the criterion: 0.82
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step6

       Current value of the information criterion: -166
       Candidate parameter psiturg is rejected

------ End of parameter selection procedure

---- Summary of the Parameter Selection procedure results

     Selected step:2
     Selected parameters: efcroiveg,efcroirepro,dlaimaxbrut
     Estimated value for efcroiveg: 4.62
     Estimated value for efcroirepro: 4.25
     Estimated value for dlaimaxbrut: 0.00029
     Results of the parameter selection procedure are stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/optim_results.Rdata
     A table summarizing the results obtained at the different steps is stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_selection_steps.csv
     Graphs and detailed results obtained for the different parameter selection steps can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.plant_biomass/param_select_step# folders.

---- End of Step Step6.plant_biomass

---- Step6.grain_number


------ Parameter automatic selection procedure: Step6.grain_number.Major(s)

       Major parameter(s): cgrain
       Estimated parameter(s): cgrain
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, efcroiveg=  4.61917, efcroirepro=  4.24638, dlaimaxbrut=  0.00029, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: chargefruit

Working: 10.00%. Estimated remaining time: 12.72 mins
Working: 20.00%. Estimated remaining time: 11.29 mins
Working: 30.00%. Estimated remaining time: 9.88 mins
Working: 40.00%. Estimated remaining time: 8.47 mins
Working: 50.00%. Estimated remaining time: 7.54 mins
Working: 60.00%. Estimated remaining time: 5.97 mins
Working: 70.00%. Estimated remaining time: 4.50 mins
Working: 80.00%. Estimated remaining time: 2.97 mins
Working: 90.00%. Estimated remaining time: 1.51 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for cgrain: 0.035
       Minimum value of the criterion: 61347299
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.grain_number/param_select_step1

       Current value of the information criterion: 202

------ Parameter automatic selection procedure: Step6.grain_number.Candidate1

       Major parameter(s): cgrain
       Current candidate parameter evaluated: nbjgrain
       Estimated parameter(s): cgrain nbjgrain
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, efcroiveg=  4.61917, efcroirepro=  4.24638, dlaimaxbrut=  0.00029, vitircarbT=  0.00031, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: chargefruit

Working: 20.00%. Estimated remaining time: 12.97 mins
Working: 40.00%. Estimated remaining time: 10.53 mins
Working: 60.00%. Estimated remaining time: 6.91 mins
Working: 80.00%. Estimated remaining time: 3.31 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for cgrain: 0.034
       Estimated value for nbjgrain: 34
       Minimum value of the criterion: 60622215
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.grain_number/param_select_step2

       Current value of the information criterion: 205
       Candidate parameter nbjgrain is rejected

------ End of parameter selection procedure

---- Summary of the Parameter Selection procedure results

     Selected step:1
     Selected parameters: cgrain
     Estimated value for cgrain: 0.035
     Results of the parameter selection procedure are stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.grain_number/optim_results.Rdata
     A table summarizing the results obtained at the different steps is stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.grain_number/param_selection_steps.csv
     Graphs and detailed results obtained for the different parameter selection steps can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.grain_number/param_select_step# folders.

---- End of Step Step6.grain_number

---- Step6.yield


------ Parameter automatic selection procedure: Step6.yield.Major(s)

       Major parameter(s): vitircarbT
       Estimated parameter(s): vitircarbT
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, efcroiveg=  4.61917, efcroirepro=  4.24638, dlaimaxbrut=  0.00029, cgrain=  0.03496, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528, cgrainv0=  0.04200
       Observed variable(s) used: mafruit

Working: 10.00%. Estimated remaining time: 13.81 mins
Working: 20.00%. Estimated remaining time: 11.79 mins
Working: 30.00%. Estimated remaining time: 11.27 mins
Working: 40.00%. Estimated remaining time: 9.71 mins
Working: 50.00%. Estimated remaining time: 7.94 mins
Working: 60.00%. Estimated remaining time: 5.45 mins
Working: 70.00%. Estimated remaining time: 4.34 mins
Working: 80.00%. Estimated remaining time: 3.08 mins
Working: 90.00%. Estimated remaining time: 1.39 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for vitircarbT: 0.0009
       Minimum value of the criterion: 27
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/param_select_step1

       Current value of the information criterion: 12

------ Parameter automatic selection procedure: Step6.yield.Candidate1

       Major parameter(s): vitircarbT
       Current candidate parameter evaluated: pgrainmaxi
       Estimated parameter(s): vitircarbT pgrainmaxi
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, efcroiveg=  4.61917, efcroirepro=  4.24638, dlaimaxbrut=  0.00029, cgrain=  0.03496, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, cgrainv0=  0.04200
       Observed variable(s) used: mafruit

Working: 20.00%. Estimated remaining time: 6.80 mins
Working: 40.00%. Estimated remaining time: 8.91 mins
Working: 60.00%. Estimated remaining time: 6.54 mins
Working: 80.00%. Estimated remaining time: 2.88 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for vitircarbT: 0.00095
       Estimated value for pgrainmaxi: 0.039
       Minimum value of the criterion: 22
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/param_select_step2

       Current value of the information criterion: 12
       Candidate parameter pgrainmaxi is rejected

------ Parameter automatic selection procedure: Step6.yield.Candidate2

       Major parameter(s): vitircarbT
       Current candidate parameter evaluated: cgrainv0
       Estimated parameter(s): vitircarbT cgrainv0
       Forced parameter(s): stlevamf=224.71943, stamflax=277.26244, stdrpmat=517.96341, jvc= 34.37244, sensrsec=  0.98633, jvcmini=  3.34810, stressdev=  0.51269, efcroiveg=  4.61917, efcroirepro=  4.24638, dlaimaxbrut=  0.00029, cgrain=  0.03496, belong=  0.02280, durvieF=260.00000, vlaimax=  2.38000, psisto= 12.60000, psiturg= 10.60000, nbjgrain= 36.00000, pgrainmaxi=  0.05528
       Observed variable(s) used: mafruit

Working: 20.00%. Estimated remaining time: 6.93 mins
Working: 40.00%. Estimated remaining time: 5.21 mins
Working: 60.00%. Estimated remaining time: 3.46 mins
Working: 80.00%. Estimated remaining time: 1.73 mins
Working: 100.00%. Estimated remaining time: 0.00 mins

       Estimated value for vitircarbT: 0.0009
       Estimated value for cgrainv0: 0.046
       Minimum value of the criterion: 27
       Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/param_select_step3

       Current value of the information criterion: 15
       Candidate parameter cgrainv0 is rejected

------ End of parameter selection procedure

---- Summary of the Parameter Selection procedure results

     Selected step:1
     Selected parameters: vitircarbT
     Estimated value for vitircarbT: 0.0009
     Results of the parameter selection procedure are stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/optim_results.Rdata
     A table summarizing the results obtained at the different steps is stored in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/param_selection_steps.csv
     Graphs and detailed results obtained for the different parameter selection steps can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6/Step6.yield/param_select_step# folders.

---- End of Step Step6.yield

-- Summary of the multi-step procedure results

   List of observed variables used: iamfs, ilaxs, imats, masec_n, chargefruit, mafruit
   Estimated value for stlevamf: 225
   Estimated value for stamflax: 277
   Estimated value for stdrpmat: 518
   Estimated value for jvc: 34
   Estimated value for sensrsec: 0.99
   Estimated value for jvcmini: 3.3
   Estimated value for stressdev: 0.51
   Estimated value for efcroiveg: 4.6
   Estimated value for efcroirepro: 4.2
   Estimated value for dlaimaxbrut: 0.00029
   Estimated value for cgrain: 0.035
   Estimated value for vitircarbT: 0.0009
   Forced value for belong: 0.023
   Forced value for durvieF: 260
   Forced value for vlaimax: 2.4
   Forced value for psisto: 13
   Forced value for psiturg: 11
   Forced value for nbjgrain: 36
   Forced value for pgrainmaxi: 0.055
   Forced value for cgrainv0: 0.042
   Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step6

   Average time for the model to simulate all required situations: 3.4sec elapsed
   Total number of criterion evaluation: 8349
   Total time of model simulations: 28085sec elapsed
   Total time of parameter estimation procedure: 28451sec elapsed

-- End of Step6

-- Step7

   Estimated parameter(s): stlevamf stamflax stdrpmat jvc sensrsec jvcmini stressdev efcroiveg efcroirepro dlaimaxbrut cgrain vitircarbT
   Forced parameter(s): belong=  0.023, durvieF=260.000, vlaimax=  2.380, psisto= 12.600, psiturg= 10.600, nbjgrain= 36.000, pgrainmaxi=  0.055, cgrainv0=  0.042
   Observed variable(s) used: iamfs, ilaxs, imats, masec_n, chargefruit, mafruit

Working: 5.00%. Estimated remaining time: 34.16 hours
Working: 10.00%. Estimated remaining time: 43.33 hours
Working: 15.00%. Estimated remaining time: 45.86 hours
Working: 20.00%. Estimated remaining time: 47.27 hours
Working: 25.00%. Estimated remaining time: 41.94 hours
Working: 30.00%. Estimated remaining time: 38.60 hours
Working: 35.00%. Estimated remaining time: 35.64 hours
Working: 40.00%. Estimated remaining time: 32.64 hours
Working: 45.00%. Estimated remaining time: 1.24 days
Working: 50.00%. Estimated remaining time: 1.11 days
Working: 55.00%. Estimated remaining time: 1.02 days
Working: 60.00%. Estimated remaining time: 0.91 days
Working: 65.00%. Estimated remaining time: 0.79 days
Working: 70.00%. Estimated remaining time: 0.68 days
Working: 75.00%. Estimated remaining time: 0.55 days
Working: 80.00%. Estimated remaining time: 0.44 days
Working: 85.00%. Estimated remaining time: 0.32 days
Working: 90.00%. Estimated remaining time: 0.21 days
Working: 95.00%. Estimated remaining time: 0.11 days
Working: 100.00%. Estimated remaining time: 0.00 days

   Estimated value for stlevamf: 208
   Estimated value for stamflax: 346
   Estimated value for stdrpmat: 685
   Estimated value for jvc: 58
   Estimated value for sensrsec: 0.39
   Estimated value for jvcmini: 4.7
   Estimated value for stressdev: 0.12
   Estimated value for efcroiveg: 3.6
   Estimated value for efcroirepro: 4.8
   Estimated value for dlaimaxbrut: 0.00058
   Estimated value for cgrain: 0.039
   Estimated value for vitircarbT: 0.00064
   Minimum value of the criterion: 63
   Complementary graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette/AgMIP_protocol_step7

   Average time for the model to simulate all required situations: 20sec elapsed
   Total number of criterion evaluation: 8995
   Total time of model simulations: 182491sec elapsed
   Total time of parameter estimation procedure: 183271sec elapsed

-- End of Step7

Graphs and results can be found in /storage/simple/projects/inra_ea/emmah/sbuis/AgMIP_calibration_Protocol_vignette

End of AgMIP Phase IV protocol

Exploring the results

run_protocol_agmip returns a single structured R object that provides a compact, structured summary of the calibration protocol results.

However, the function also produces a large number of additional outputs on disk, in the directory specified by the out_dir argument (equal to getwd() by default). These files contain, in particular, the full outputs of all calls to estim_param performed during Step 6 and Step 7 (including detailed optimization traces, diagnostics, details on parameter selection steps, and intermediate results for each individual minimization).

The returned R object is designed to give direct programmatic access to the main results of the protocol, while the output directory ensures full description of the results obtained.

Readers can refer to the system.file("extdata", "AgMIP_protocol", "results", package = "CroptimizR") folder to explore all the results saved on disk by run_protocol_agmip for this example.

Global structure of the returned object

The main components of the returned R object are:

final_values: final estimated parameter values,

head(res$final_values)
#>    stlevamf    stamflax    stdrpmat         jvc    sensrsec     jvcmini
#> 208.0985918 346.1809368 684.9804296  58.0940869   0.3910102   4.7329535

forced_param_values: values of parameters that are fixed during the final calibration step (step 7), including non-selected candidate parameters and parameters explicitly fixed in the protocol via the forced_param_values input argument.

head(res$forced_param_values)
#>   belong  durvieF  vlaimax   psisto  psiturg nbjgrain
#>   0.0228 260.0000   2.3800  12.6000  10.6000  36.0000

obs_var_list: observed variables used for calibration,

res$obs_var_list
#> [1] "iamfs"       "ilaxs"       "imats"       "chargefruit" "mafruit"
#> [6] "masec_n"

values_per_step: parameter values after each step,

head(res$values_per_step)
#>       name default       step6       step7
#> 1 stlevamf 324.800 224.7194314 208.0985918
#> 2 stamflax 446.800 277.2624366 346.1809368
#> 3 stdrpmat 820.000 517.9634083 684.9804296
#> 4      jvc  58.364  34.3724403  58.0940869
#> 5 sensrsec   0.800   0.9863296   0.3910102
#> 6  jvcmini  11.800   3.3481046   4.7329535

stats_per_step: fit statistics for each variable and each step,

head(res$stats_per_step)
#>                  step    variable        Bias2      MSE     rRMSE         EF
#> 1             Default chargefruit 2.871521e+07 38855376 0.2939773 -1.6738864
#> 2     Step6.phenology chargefruit 2.732721e+07 35546572 0.2811817 -1.4461865
#> 3 Step6.plant_biomass chargefruit 2.189813e+06  6907875 0.1239540  0.5246250
#> 4  Step6.grain_number chargefruit 4.143539e+02  4719023 0.1024505  0.6752539
#> 5         Step6.yield chargefruit 4.143539e+02  4719023 0.1024505  0.6752539
#> 6               Step7 chargefruit 1.814333e+05  5119747 0.1067118  0.6476776

step6, step7: detailed results for each part of the protocol.

Exploring parameter selection results (Step 6)

During Step 6, a parameter selection procedure is applied independently within each sub-step of the protocol for which candidate parameters have been specified. Detailed information on this process is available both in the R object returned by run_protocol_agmip and in the outputs written to disk.

Within the returned object, parameter selection details can be accessed via the param_selection_steps element of each Step 6 sub-step, i.e. res$step6$Step6.***$param_selection_steps.

This element records the successive stages of the selection procedure, including the parameters retained or discarded at each stage, together with the associated intermediate results.

For this example, res$step6$Step6.phenology$param_selection_steps contains:

Estimated.parameters	Initial.parameter.values	Final.values	Initial.Sum.of.squared.errors	Final.Sum.of.squared.errors	AICc	Selected.step
stlevamf, stamflax, stdrpmat	324.80, 446.80, 820.00	192.06, 255.53, 500.00	27184	785	129.61
stlevamf, stamflax, stdrpmat, jvc	192.06, 255.53, 500.00, 32.99	209.94, 253.51, 500.00, 35.82	1161	683	126.21
stlevamf, stamflax, stdrpmat, jvc , sensrsec	209.94, 253.51, 500.00, 35.82, 0.47	216.50, 253.14, 500.00, 27.52, 0.91	722	626	125.14
stlevamf, stamflax, stdrpmat, jvc , sensrsec, belong	216.498, 253.139, 500.000, 27.517, 0.912, 0.011	215.784, 256.069, 500.000, 29.067, 0.984, 0.011	662	616	127.19
stlevamf, stamflax, stdrpmat, jvc , sensrsec, jvcmini	216.50, 253.14, 500.00, 27.52, 0.91, 3.26	230.01, 257.10, 503.11, 28.81, 0.94, 3.36	868	579	124.59
stlevamf , stamflax , stdrpmat , jvc , sensrsec , jvcmini , stressdev	230.009, 257.102, 503.108, 28.811, 0.938, 3.357, 0.062	224.72, 277.26, 517.96, 34.37, 0.99, 3.35, 0.51	4704	448	116.71	X

Note that, for the sake of brevity, only the initial and final values of the repetition that produced the lowest criterion are stored in this table.

The same information is also saved to disk as CSV files, with one file per Step 6 sub-step, located in out_dir/Step6.***/param_selection_steps.csv. Detailed results from all parameter estimations conducted during the selection procedure are stored in the directories out_dir/Step6.***/param_select_step*. For this vignette, out_dir corresponds to system.file("extdata", "AgMIP_protocol", "results", package = "CroptimizR").

Built-in diagnostics plots

Several diagnostic plots are automatically generated and saved to disk in the files plot_MSE_Bias2_per_step.pdf and scatter_plots_*.pdf.

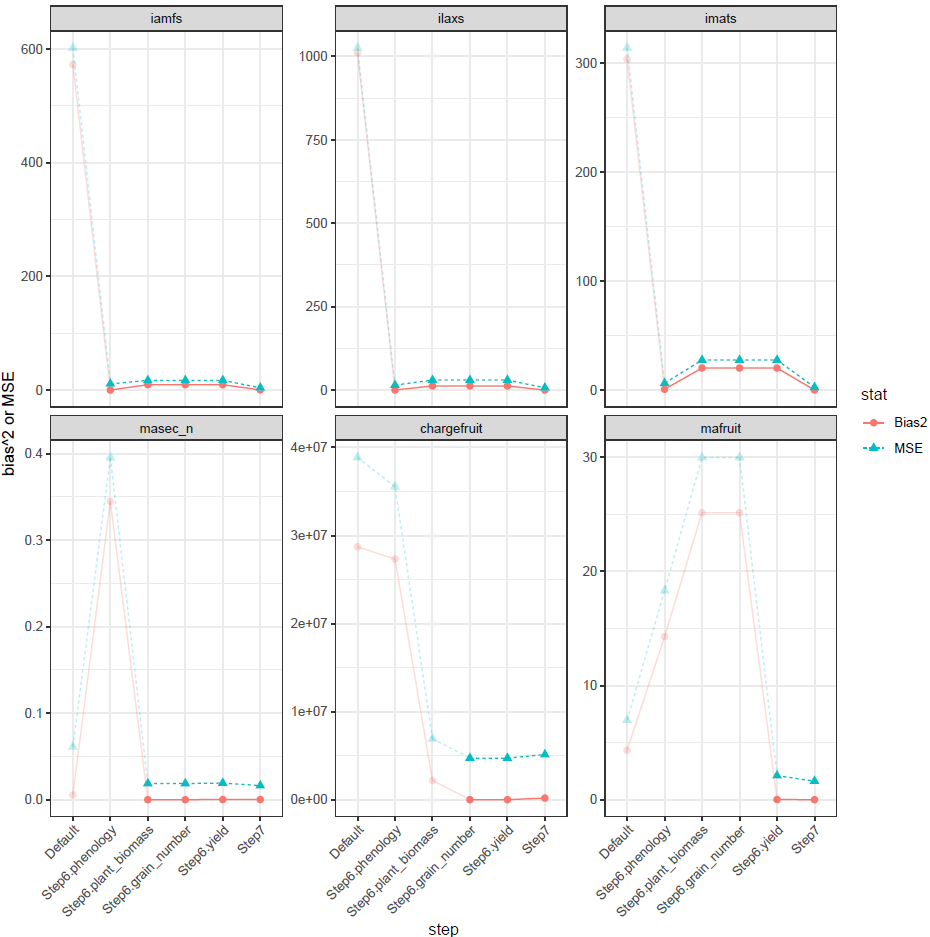

plot_MSE_Bias2_per_step.pdf shows the evolution of the mean squared error (MSE) and bias² for each observed variable across the different steps of the protocol. We can check that the performance of a variable is not degraded after it has been used in a step. In this example, this holds for almost all variables, except imats, for which bias² and MSE are affected in the plant_biomass step. Note, however, that step 7 corrects this effect. The graph also illustrates that bias² and MSE are substantially reduced compared to the values obtained using the default parameter settings.

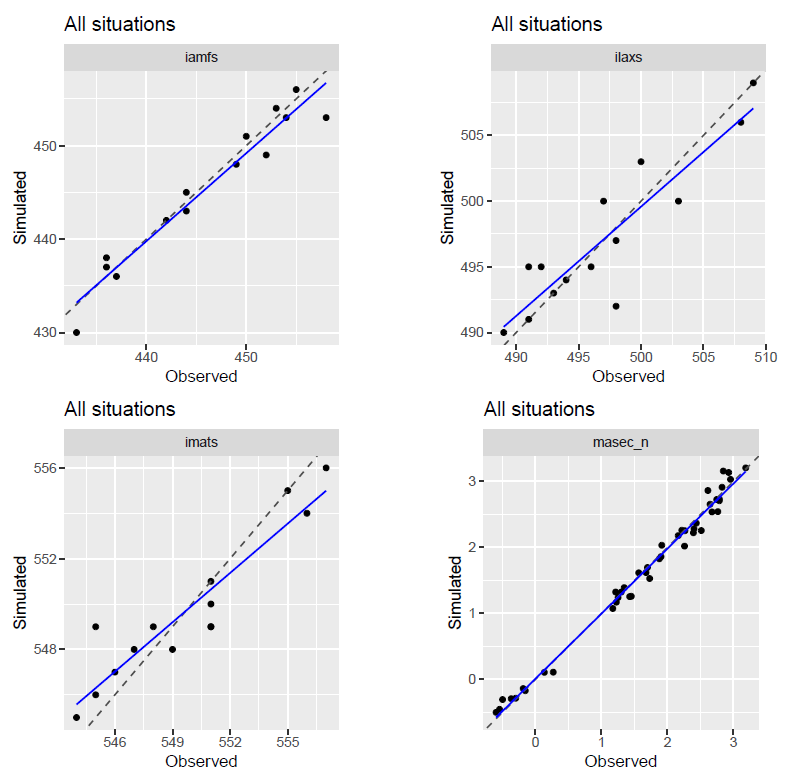

The files scatter_plots_*.pdf contain scatter plots of simulated versus observed variables after each protocol step, allowing a closer inspection of the effect of each step. Here, we display the first page of the scatter_plots_step7.pdf file, which shows the results obtained at the end of the protocol for this example for variables iamfs, ilaxs, imats and masec_n.

Evaluating the results on an independent dataset

The calibrated model can then be evaluated on an independent dataset (here, the 8 evaluation situations) using the model wrapper function and the results provided by run_protocol_agmip.

# Load observations for evaluation for our example
obs_eval <- readRDS(
  system.file("extdata", "AgMIP_protocol", "vignette_data", "obs_eval.Rds", package = "CroptimizR")
)

# Get the names of the evaluation situations
situations_eval <- names(obs_eval)

# Run the model on the evaluation situations using the default and then the estimated parameter values
sim_before_calib <- SticsOnR::stics_wrapper(
  param_values = param_info$default,
  model_options = model_options,
  situation = situations_eval
)
sim_post_calib <- SticsOnR::stics_wrapper(
  param_values = c(res$final_values, res$forced_param_values),
  model_options = model_options,
  situation = situations_eval
)

Note the use of res$forced_param_values, which includes the default values of non-selected candidate parameters, whereas param_info$default contains default values for all parameters.

library(CroPlotR)
# Compare rRMSE obtained with default and estimated values of the parameters using CroPlotR

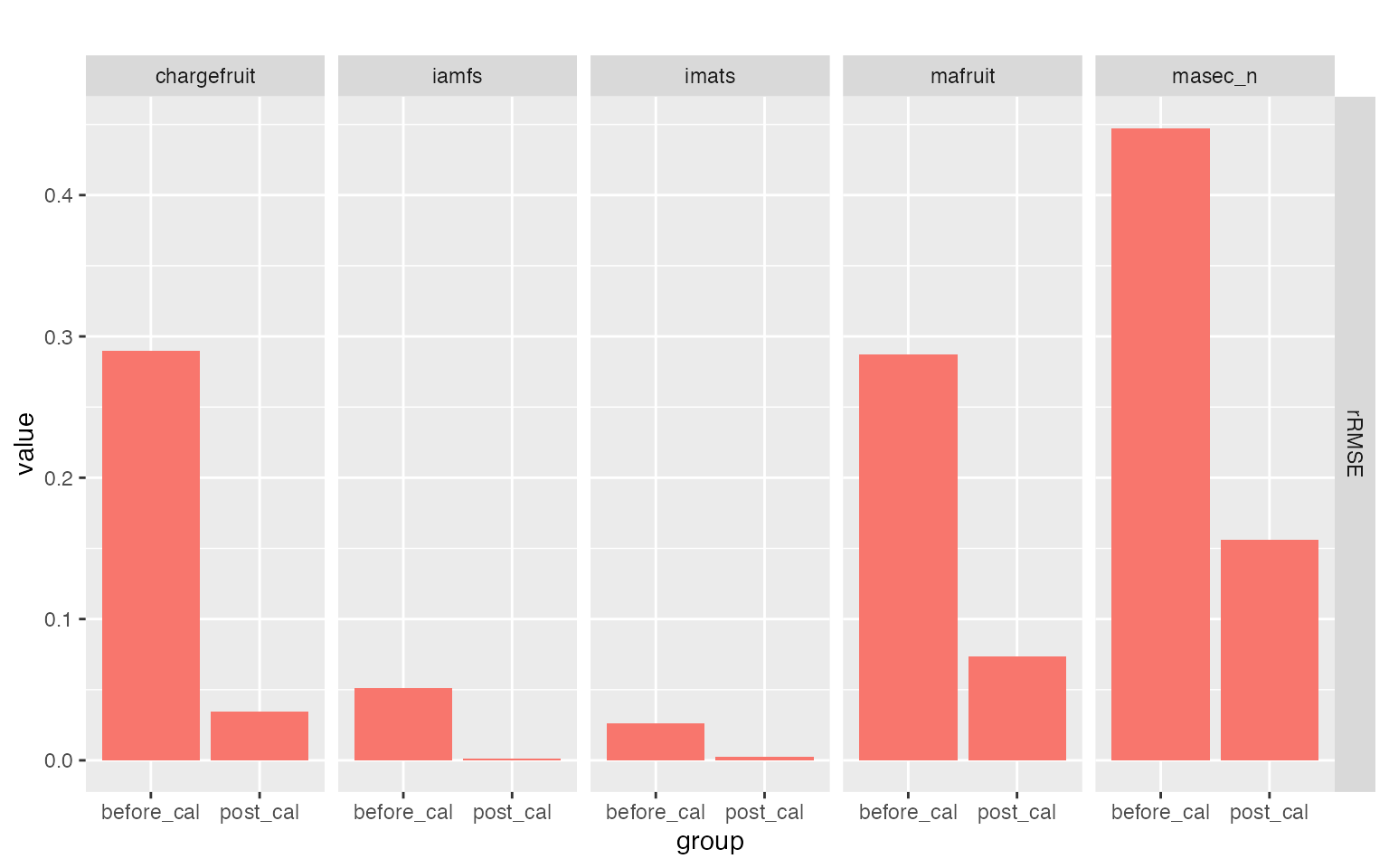

plot(summary(before_cal = sim_before_calib$sim_list, post_cal = sim_post_calib$sim_list, obs = obs_eval, stat = "rRMSE"))

# Compare observations and simulations, obtained with default and estimated values of the parameters, on scatter plots, using CroPlotR

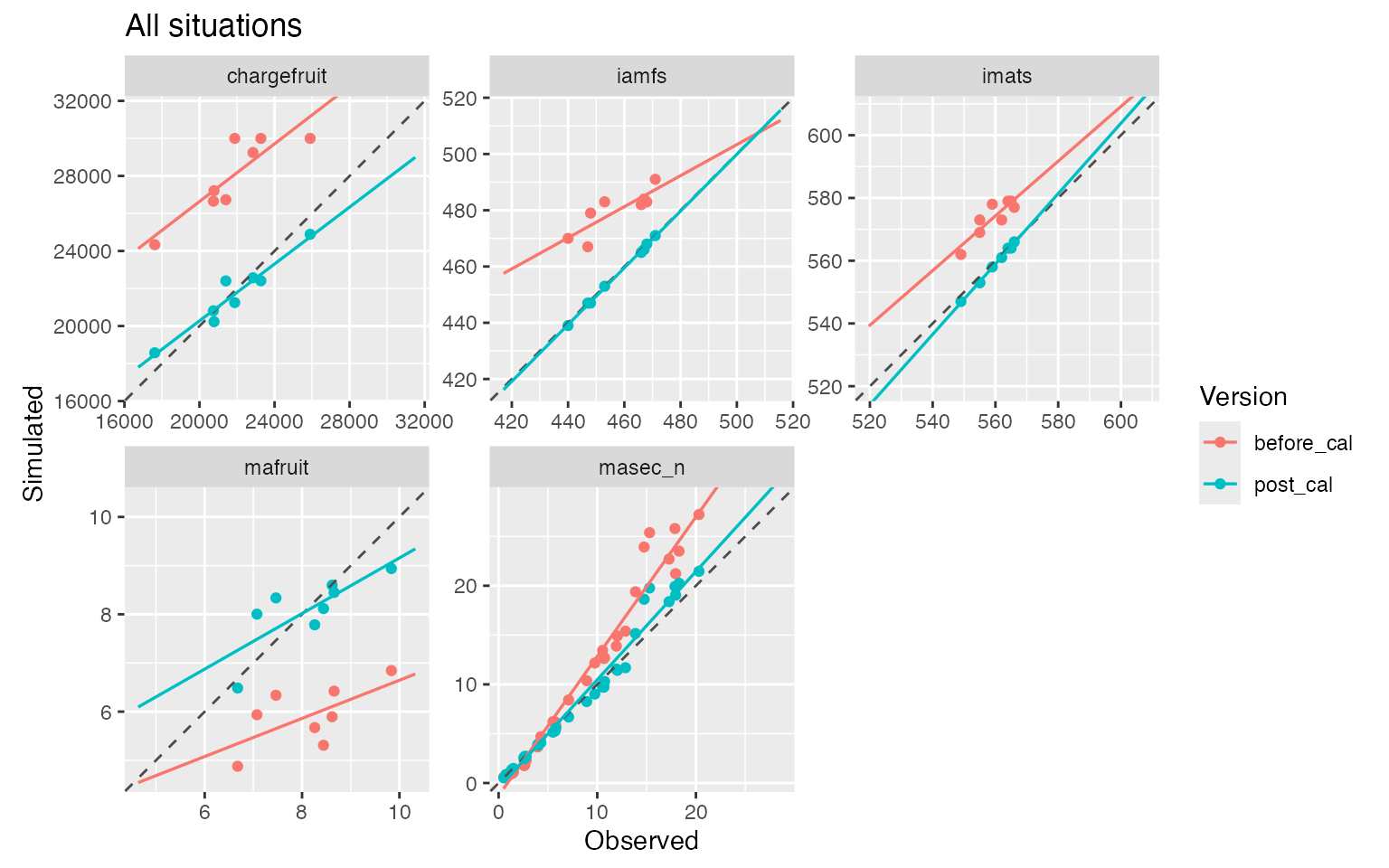

plot(before_cal = sim_before_calib$sim_list, post_cal = sim_post_calib$sim_list, obs = obs_eval, type = "scatter")
#> $all_situations

This allows us to assess whether calibration improves predictive performance on the evaluation dataset compared to the default parameter values. This is indeed the case here, particularly for phenology and biomass-related variables, while yield shows a more moderate but still consistent improvement.

Conclusion

This vignette illustrates how the AgMIP calibration protocol can be fully automated in CroptimizR using a compact and explicit protocol description. The same approach can be applied to other crop models and datasets, provided that a suitable wrapper and protocol specification are available.

Samuel Buis

2026-02-10
